The LS System enhanced valves are designed for higher operating pressures than the standard line and continuous use at high actuation frequencies such as for precision pressure control.
|
 |
 |
 |
|
Valves
|
LS-V05s
|
LS-V15s
|
LS-V25s
|
|
Flow Capacity (approx.)
(80 psig to atmosphere)
|
170 SLPM
(6 SCFM)
|
460 SLPM
(16 SCFM)
|
1300 SLPM
(46 SCFM)
|
|
Max. Valve Coefficient (Cv)
|
0.13
|
0.35
|
1.00
|
|
Ports
|
10-32 UNF-3B
|
1/8″ NPTF
|
1/4″ NPTF
|
|
Shifting Time
|
2.4 ms
|
2.5 ms
|
2.5 ms
|
|
Air Pressure Range
|
-1…+10 bar (vacuum to 150 psig)
|
|
Media
|
Dry non-lubricated air, vacuum, non-flammable & non-corrosive dry gases (0.3 micron fine grade coalescing filter with 5 micron pre-filter).
|
|
Electronics
|
For use with Enfield Technologies control and drive electronics.
|
|
Data Sheet
|
|
|
|
|
Dimensional Drawing
|
|
|
|
|
3D Model
|
|
|
|

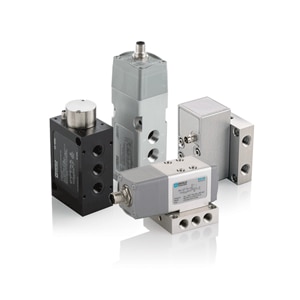

The M series valves are instrument-grade, proportional, directional control pneumatic valves for high performance applications such as medical equipment, test and measurement systems, advanced automation and animatronics.
|
 |
 |
 |
|
Valves
|
M1D
|
M2D
|
M2S
|
| Function |
5-port (5/3) bi-directional direct acting proportional control valve, normally closed center |
|
Flow Capacity (approx.)
(80 psig to atmosphere)
|
60 SCFM
|
60 SCFM
|
60 SCFM
|
|
Max. Valve Coefficient (Cv)
|
1.1
|
1.1
|
1.1
|
|
Ports
|
3/8″ NPTF
|
3/8″ NPTF
|
3/8″ NPTF |
|
Shifting Time
|
2.8 ms
|
2.8 ms
|
2.8 ms
|
|
Air Pressure Range
|
-1…+16 bar (vacuum to 225 psig)
|
|
Media
|
Dry non-lubricated air, vacuum, non-flammable & non-corrosive dry gases (0.3 micron fine grade coalescing filter with 5 micron pre-filter).
|
|
Input Signal Ranges
|
0 Vdc to 5 Vdc
0 Vdc to 10 Vdc
PWM >2kHz |
-10 Vdc to 10 Vdc
-5 Vdc to 5 Vdc
0 Vdc to 5 Vdc
0 Vdc to 10 Vdc
0 mA to 20 mA
4 mA to 20 mA
|
For use with approved Enfield electronics. |
|
Data Sheet
|
|
|
|
|
Dimensional Drawing
|
|
|
|
|
3D Model
|
|
|
|
|
